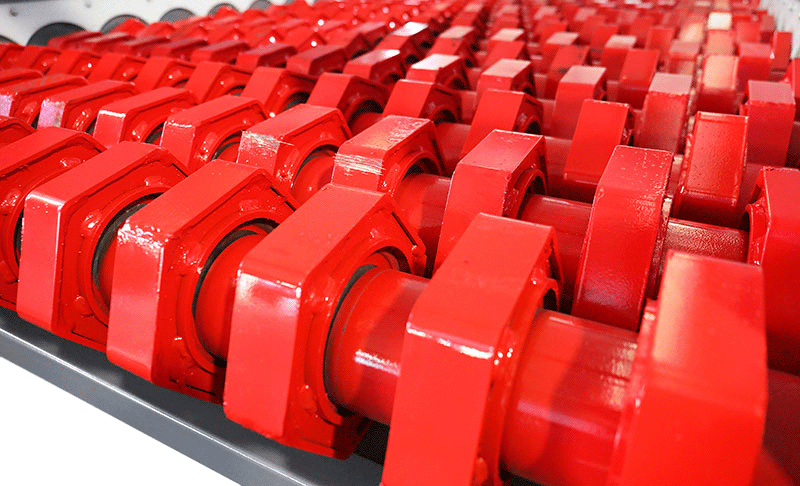

The Harden disc screen is a professional sorting machine that distinguishes materials of different sizes and shapes by using rotating discs. As the machine operates, the polygonal discs all rotate in the same direction as the roller, causing the materials on them to move in a combined horizontal and tumbling motion, making the materials looser. The rotating polygonal discs hit and spread the materials, causing them to jump and tumble. When the size of the materials is smaller than the gap between the discs during this movement, they pass through the side gap of the disc, thereby achieving the screening function.

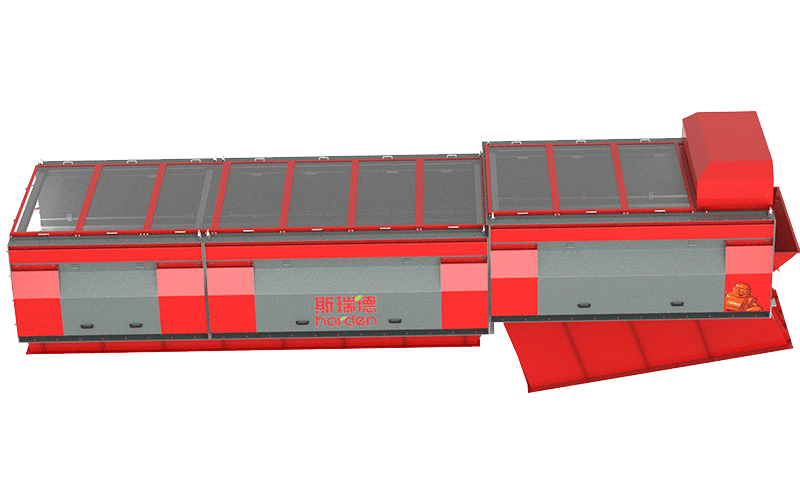

Unit modular design makes shipment convenient | High production capacity with low floor area | Open type screening surface leads to maintenance friendly

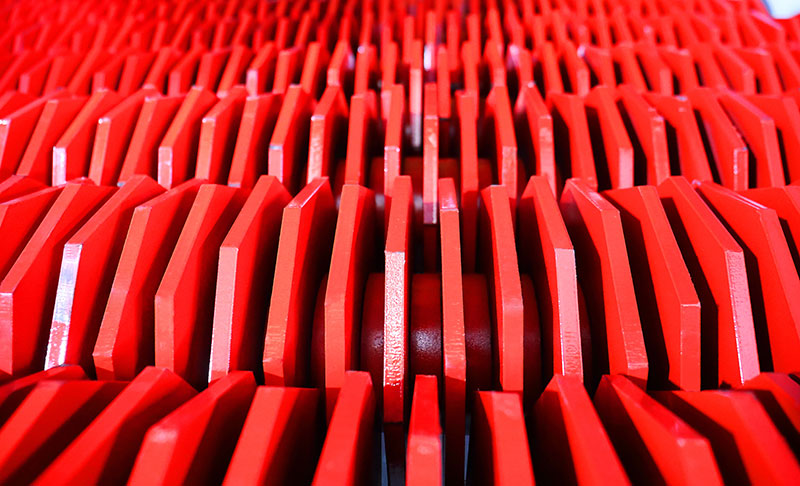

10-200mm adjustment depends on material property an screen purpose

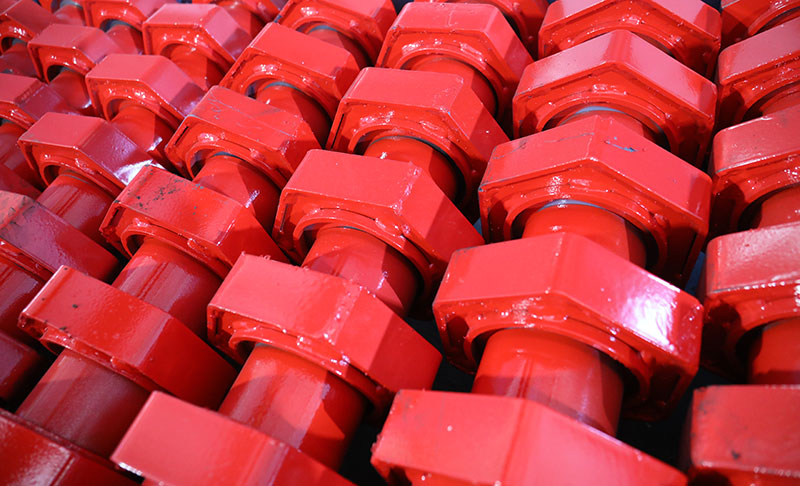

Anti-blocking structure | Patented anti-winding design aims at large mesh screen
Low energy cost | High safety performance

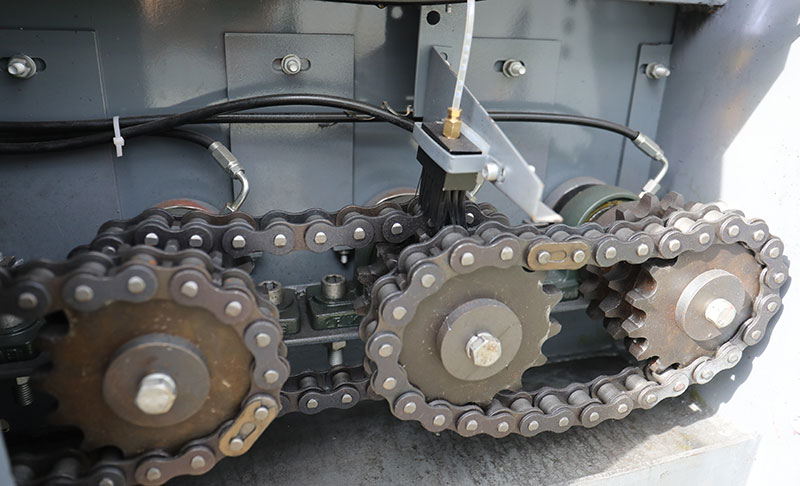

Unique tension chain design | Stable operation
| Model | SDS1630 | SDS1650 |
| Motor Power（KW） | 5.5-7.5 | 11-15 |
| Motor Quantity | 1 | 2 |
| Operation Area Dimension（L*W） | 3*1.6m | 5*1.6m |
| Capacity Design（T/H） | 15-20 | 30-40 |
| Mesh Screen Dimension（mm） | 20-350 | 20-350 |

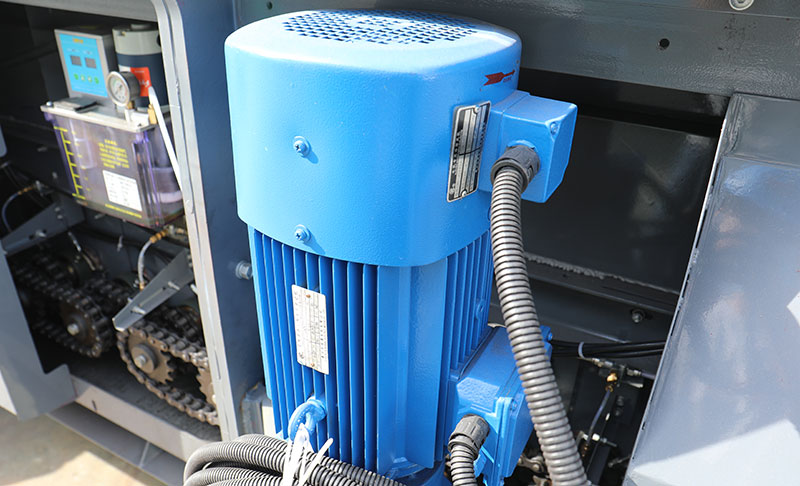

| Electrical Control | Variable Frequency | Variable Frequency |
| Machine Weight（KG） | ~3000 | ~5500 |
| （The capacity is calculated according to the density of municipal solid waste 350kg/m³and the mesh size of 80mm） | ||
